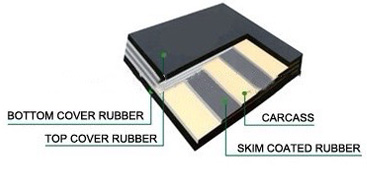

General Fabric Conveyor Belt

Product features:



1.The general fabric conveyor belt is made of EP, NN or Cotton fabric and finished through the processes of calendering, firming and vulcanizing, etc.
2.It is suitable for conveying in normal temperature various non-corrosive pointless lumps, granular or powders such as coal, coke, sand and cement in bulk or packaged products.
3.We could offer belt with cover grades in accordance to International standard, like DIN, RMA, AS, SANS, ISO, BS, JIS etc.



>>top

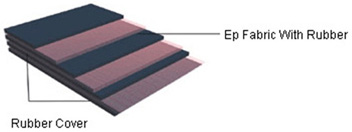

Polyester conveyor belt:

1. Polyester conveyor belt, also called EP or PN conveyor belt, whose tension resistant body is canvas woven by polyester in warp and polyamide in weft.
2. The belt has the characteristics of low elongation in warp and good troughability in weft, good water resistance, good wet strength, suitable for medium, long-distance and heavy-load transportation of materials.
3.Because of the high initial modulus of polyester, the belt can choose a relative low safety factor.

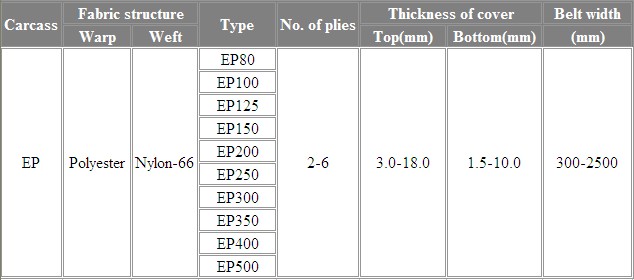

Specification Availability

>>top

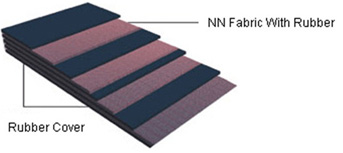

Nylon conveyor belt:

1. Nylon is one of the best quality synthetic fiber the rubber industry use nowadays.
2. The nylon canvas is woven by nylon fiber both in warp and in weft, it is the most widely used fabric in rubber industry, and its outstanding merits are its high abrasion resistance, high tensile strength and good fatigue resistance.
3. Conveyor belt with nylon canvas inside has the characteristics of thin belt body, high tensile strength, good shock resistance, good troughability, high adhesion between plies, splendid flexibility and long working life.
4. Nylon conveyor belt is suitable for medium, long-distance and heavy-load transportation of materials, widely used in mining, metallurgical industry and architectural industry, ports.

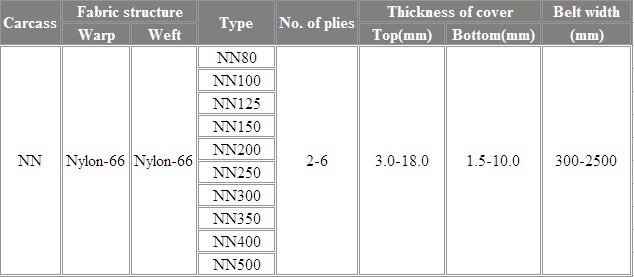

Specification Availability

>>top

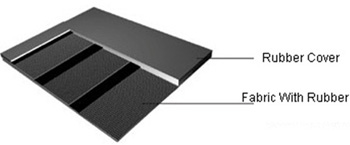

Cotton conveyor belts:

1. Cotton canvas is woven by cotton fibers both in warp and in weft,its elongation is relatively low, it is good in mechanical fastening and adhesion with rubber.
2. Cotton conveyor belt has relatively small deformation under high temperature conditions, suitable for short-distance and light-load transportation of materials.
3. Polyester cotton conveyor belt is the upgraded product of cotton conveyor belt, and its tension resistant body is woven by polyester cotton fibers in warp and cotton fibers in weft.
4. Its comprehensive physical and mechanical characteristics are obviously better than those of cotton conveyor belt, especially the belt body is thinner and lighter, the belt has better shock resistance and thus the belt has better use function and can reduce energy and material consumption for users.it is the ideal selection for medium, short-distance and medium-load transportation of materials.



Specification Availability
