Wrapped V-Belt
|
>>top |

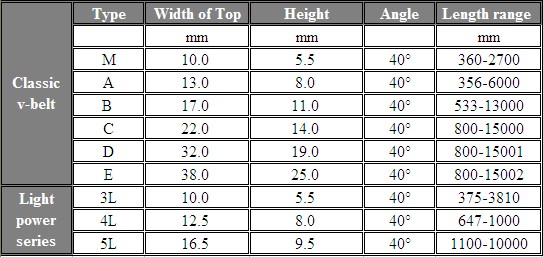

1.Classic V-Belt
This belt is very commonly used for power transmission. We supply a wide range of types including heat resistance, oil resistance and flexible types. Application: General Engineering Industries & Agricutural Industries Main Type: M, A, B, C, D, E, 3L, 4L and 5L
|
>>top |

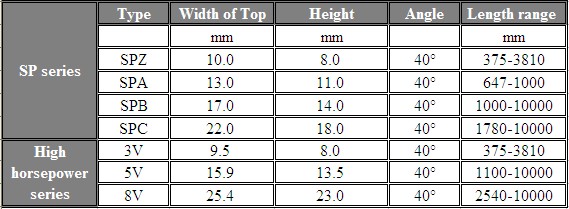

2.Narrow V-Belt
Narrow v-belt has double power transmission capacity of the classic v-belts due to the effect of the wedge. It features high-speed transmission, and an energy-saving, compact design. Application: Narrow v-belt can be used on all the new drives, from light duty drives to heavily loaded drives. Main Type: SPZ, SPA, SPB, SPC, 3V, 5V and 8V
|
>>top |

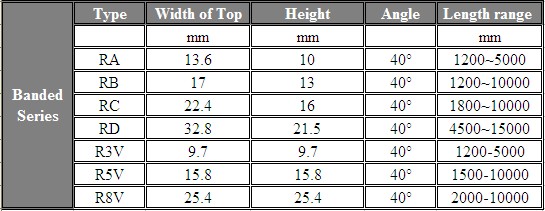

3.Banded V-Belt
Banded v-belt is made up from Classical, or Narrow belts with a strong tie band over them. Application: used in Vertical shaft drives, V-flat drives, Compressors, Pumps and Agricultural drives. Main type: RA, RB, RC,RD, R3V, R5V, R8V, RSPZ, RSPA, RSPB and RSPC
|
>>top |

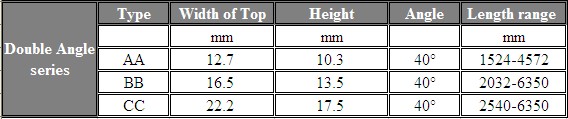

4.Double V-Belt
Double V-Belt, also named Six side Belt, there are four side on the working section. Application: Textile and Agriculture machine. Main type: AA, BB and CC
|
>>top |
|
